Personal
18
months
- 4G Cat-1/2G
- Drive Behavior
- Odometer and Hour Meter
- OTA (Over The Air) Updates
Safety and tracking anywhere, with accuracy and autonomy.
Track driver behavior with the Drive Behavior system
Whether it’s a sudden brake, a reckless turn, or an unusual acceleration, you’ll track and record everything.
4G Cat-1 Connection
The network with the widest coverage in Brazil.
OTA
(Over The Air)
Updates
Easy, fast, and efficient updates directly from the internet.
S.O.S. Button
Removal sensor (light) and fixing magnet.
Standard TCP/IP Protocol
x12-GT06 or x22-NT20, Integrated into most platforms.
Economy Mode
Best performance SLPON (Sleep and Wake)
Best battery in its category
Over 3 hours of movement or 24 hours stationary.
High sensitivity GPS
With curve sensor.
SMS Support
For location and configuration.
Technical Information

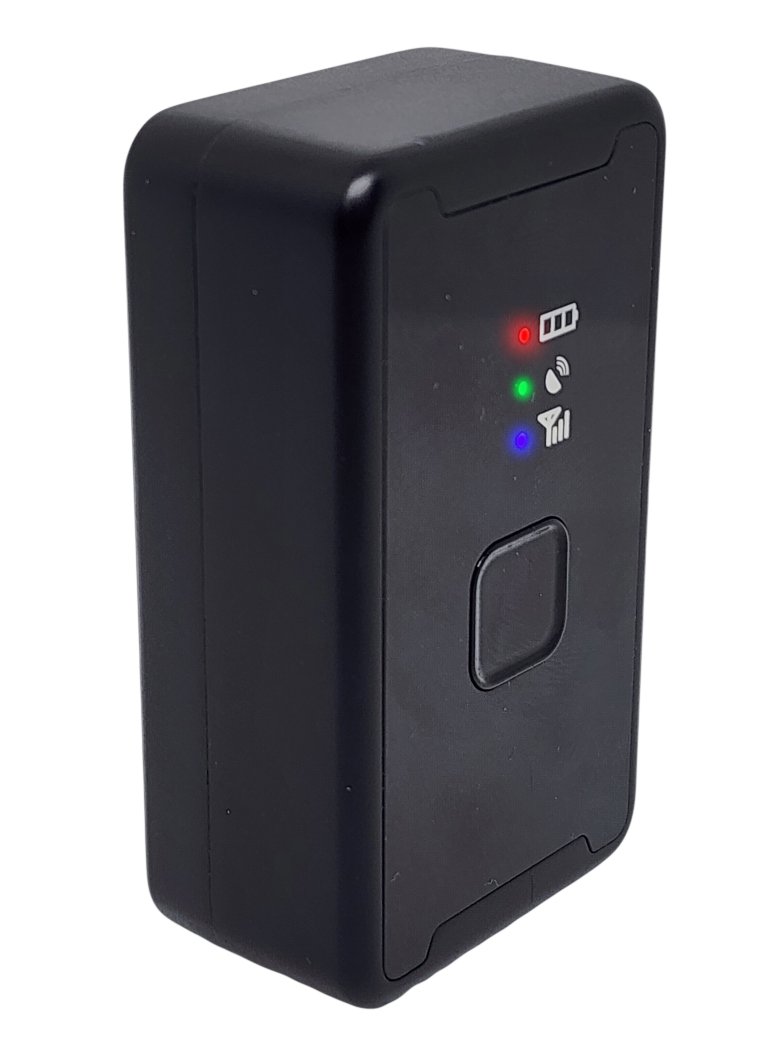

It is a high-tech portable tracker, developed to meet both personal tracking needs and vehicle monitoring. Compact and versatile, it can be used in bags, backpacks, clothing pockets, or as a vehicle tracker for monitoring, as long as the battery is charged.
Utilizes 4G cellular communication in LTE-CAT1 technology with fallback to 2G (4 bands) and positioning detection via GPS satellite triangulation (Global Positioning System), ensuring precision and reliability in various situations.
The XT40-PERSONAL offers a rechargeable internal battery, eliminating the need for fixed connections for continuous power, allowing for use on the move.
| 4G Cellular Band | LTE-FDD CAT-1 B1/B3/B5/B7/B28 2100/1800/850/2600/700 MHz |
| 2g Cellular Band | GSM: 850/900/1800/1900MHz |
| GPRS | Class12, TCP/IP |
| GPS | GPS/BDS/GNSS/LBS – 72 Channels |
| GPS Sensitivity | -163dB |
| Positioning Accuracy | 10m (2D RM) |
| GPS Initialization | ~38s (Cold), ~2s (Warm) |
| Usage Consumption | 25 mA (12V) |
| Idle Consumption in Sleep | ~1 mA/h (12V) |
| Power Supply (Voltage) | 9 ~ 36Vdc |
| Dimensions (mm) | 24 x 39 x 69 mm |
| Operating Conditions | -20° to 70°C, 20% to 90% RH |
| Protection Level | IP65 |
| SIM Card Size | Nano SIM (4FF) |
| Speed Accuracy | 0.1 / meters/sec |
| Maximum Elevation | 18000m |
| Maximum Speed | 515 meters/sec |
| Acceleration | >4G (40 m/s!) |
| Internal Antennas | LTE/GSM / High-gain GPS |
| Storage (LOG) | 1000 records |
| Internal Battery | 1500mA |
