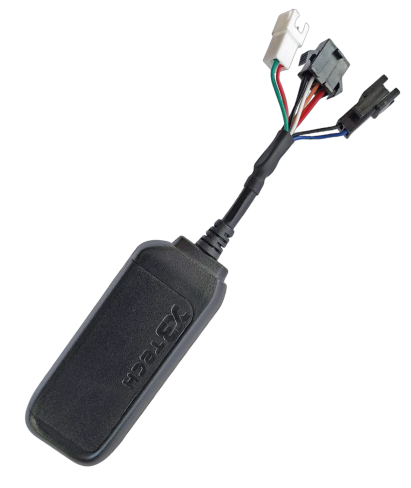

TrackerNT40 6 Wires
- 4G Cat-1/2G
- Drive Behavior
- Odometer and Hourmeter
- OTA (Over The Air) Updates
12
months
Track the driver's behavior with the Drive Behavior system
Whether it’s abrupt braking, reckless turning, or unusual acceleration, you will track and record everything.
2 inputs
and 2 outputs
1 – Positive
2 – Negative
3 – Blocking
4 – Post-ignition
5 – Panic button
6 – Buzzer
Connection 4G Cat-1
The network with the broadest coverage in Brazil.
OTA
(Over The Air)
Updates
Easy, fast, and efficient updates, directly from the internet.
Standard TCP/IPProtocol
x12-GT06 or x22-NT20, Integrated on most platforms.
Remote blocking
Progressive or direct (fuel cut-off).
High sensitivityGPS
With curve sensor.
SMS support
For location and configuration.
Economy Mode
SLPON (Sleep and Wake)
Technical information
- Reduced size, easy to hide during installation in cars, trucks, buses, and motorcycles.
- Standard TCP/IP protocol (x12-GT06 or x22-NT20) – Integrated on most platforms
- Remote firmware update via OTA (Over the Air)
- Internal battery
- Physical ignition or Virtual Ignition and SOS alert
- Accelerometer with sensitivity adjustment
- Progressive or direct remote blocking (fuel cut-off)
- High sensitivity GPS with curve sensor
- Speed, Power cut, and Ignition (ON/OFF) alarms
- Location functions via SMS
- Configuration functions via SMS, GPRS, and SERIAL
- Embedded odometer and hourmeter function in the equipment
- Economy Mode SLPON (Sleep and Wake)
| 4G Cellular Band | SIMCOM EA7670E LTE-FDD CAT-1 B1/B2/B3/B4/B5/B7/B8/B28/B66 2100/1800/850/2600/700 MHz |
| 2G Cellular Band | GSM: 850/900/1800/1900MHz |
| GPRS | Class12, TCP/IP |
| GPS | GPS/BDS/GNSS/LBS – 72 Channels |
| GPS Sensitivity | -163dB |
| Positioning Accuracy | 10m (2D RM) |
| GPS Initialization | ~38s (cold), ~2s (hot) |
| Consumption in use | 45mA/H (12V) |
| Stop consumption in sleep | 3mA/H (12V) |
| Power Supply (Voltage) | 9 ~ 90Vdc |
| Dimensions (mm) | 80 x 32 x 15 mm |
| Operating Conditions | -20° to 70°C, 20% to 90% RH |
| Protection Level | IP65 – Dust and Water Resistant |
| SIM Card Size | Micro-SIM (3FF) |
| Speed Accuracy | 0.1 / meters/sec |
| Maximum Elevation | 18000m |
| Maximum Speed/Acceleration | 515 meters/sec / >4G (40 m/s!) |
| Internal Antennas | Quad-band GSM / High-gain GPS |
| Storage (LOG) | 1,000 records |
| Internal Battery | 100mA (average autonomy of 1h) |
